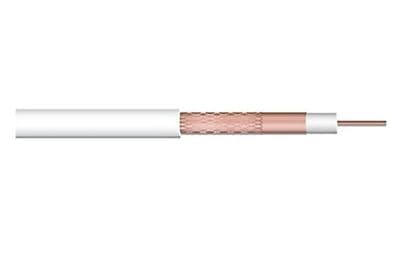

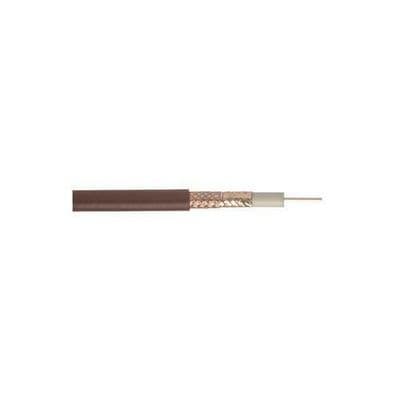

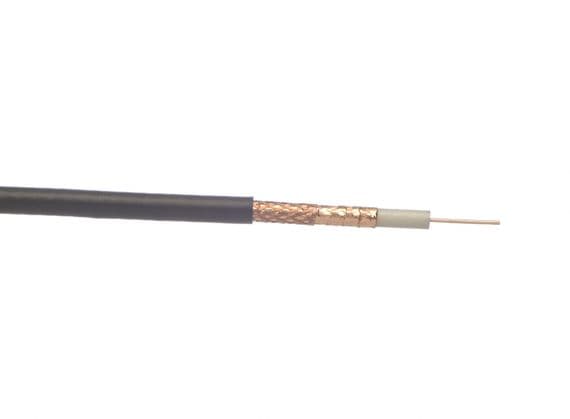

WEBRO WF100 Coaxial Cable – Satellite TV / TV Aerial

Quality TV / Satellite Aerial Cable Available in various lengths.

High quality WF100 Coaxial cable can be used for SKY HD/ Freeview HD/Freesat HD, featuring a plain copper foil and wire braiding screening, WF100 cable is a higher grade cable over RG6, plain annealed copper conductor for improved signal conductivity over the cheaper CCS / CCA cable. Cable colour Black

Coaxial cables are suitable for many applications, including low power video, video signal, and they are also used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions.

Supplied in cut lengths 10m, 20m, 30m, 40m, 50m, 75m, 100m

Inner conductor diameter: 1.00mm Plain Annealed Copper
Dielectric: Foamed Polyethylene insulation
Plain copper foil tape and wire braid screens
Insulation diameter: 4.80mm (Natural)
Storage/operating temperature: -15°C to +70°C
Minimum installation temperature: -5°C
DC resistance Inner/Outer conductor: <=26 / <=15 R/km @ 20°C
Characteristic Impedance: 75 ± 3R
Capacitance: 55pF/m (nominal)
Velocity Ratio: 0.81

Specs:

Jacket Colour: Black
Wire Gauge: 18AWG
Conductor Area CSA: 0.82mm²
No. of Max Strands x Strand Size: 1 x 1mm
Length: Available - 10m, 20m, 30m, 40m, 50m, 75m, 100m
Jacket Material: PVC
Conductor Material: Copper
External Diameter: 6.55mm
Coaxial Cable Type: WF100
Impedance: 75ohm
