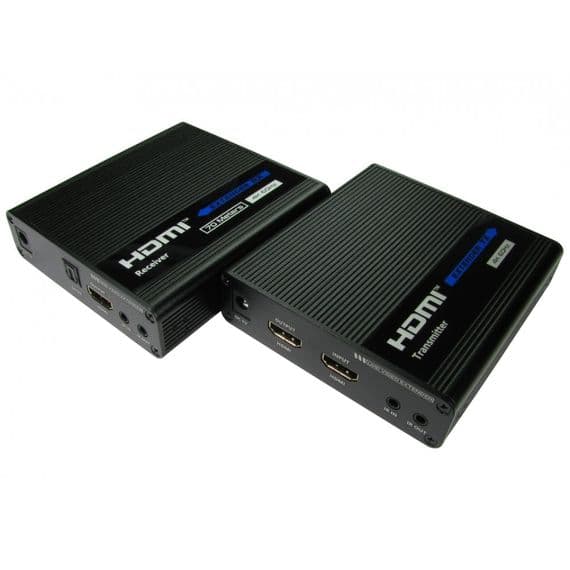

4k HDMI over CAT6 / CAT7 Extender

This 4k HDMI extender allows you to extend the distance of your HDMI signal up to 70m via a Ethernet / Network Cat6 / Cat6A / Cat7 cable. Resolves the problem when running longer HDMI cables just isn’t possible, The sender is plugged into the source device via an HDMI Cable (Not Supplied) the receiver is plugged into for example a display / monitor / TV or other device via a HDMI cable (Not Supplied). The sender and receiver are then attached together via a CAT6 / CAT6A /CAT7 cable up to 70 Metres in length.
Please note that the HDMI Cables used to attach the sender and receiver to the equipment MUST not exceed 8 Metres.
The extender can support 4k signals and High Dynamic Range with HDR10. for audio it supports LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH

It also supports I/R pass through via the supplied adapters.

•    HDMI Extender
•    4K UHD Signal Transmission
•    HDMI Version: HDMI 2.0 (HDMI backwards 1.4 compatible)
•    HDCP Version: HDCP 2.2 (HDCP 1.4 backwards compatible)
•    Transmission via  Cat6 / Cat6A / Cat7 cables
•    Transmission Distance: Up to 70 metres
•    Video Bandwidth: 18Gbps
•    Max Input Cable Length: 8m (24AWG) (HDMI)
•    Max Output Cable Length: 8m (24AWG) (HDMI)
•    Audio Support: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH

•    4K UHD Signal Transmission
•    HDR10 (YUV4:4:4)
•    HDMI Local Loop Output
•    Audio output selector (ARC or S/PDIF)
•    EDID through
•    Bi-directional IR control

Package Contents

•    1x HDMI Sender
•    1x HDMI Receiver
•    2x Power Supplies
•    1x IR Blaster
•    1x IR Receiver
•    1x User Manual
